Mesh Primitive

The Mesh primitive turns any Blender mesh object into an SDF shape. Chisel bakes the mesh into a signed-distance grid once, and from then on it behaves like every other primitive: it takes booleans, blends, mirrors, arrays, twists, and materials, and it renders in the ray-marched viewport alongside native shapes.

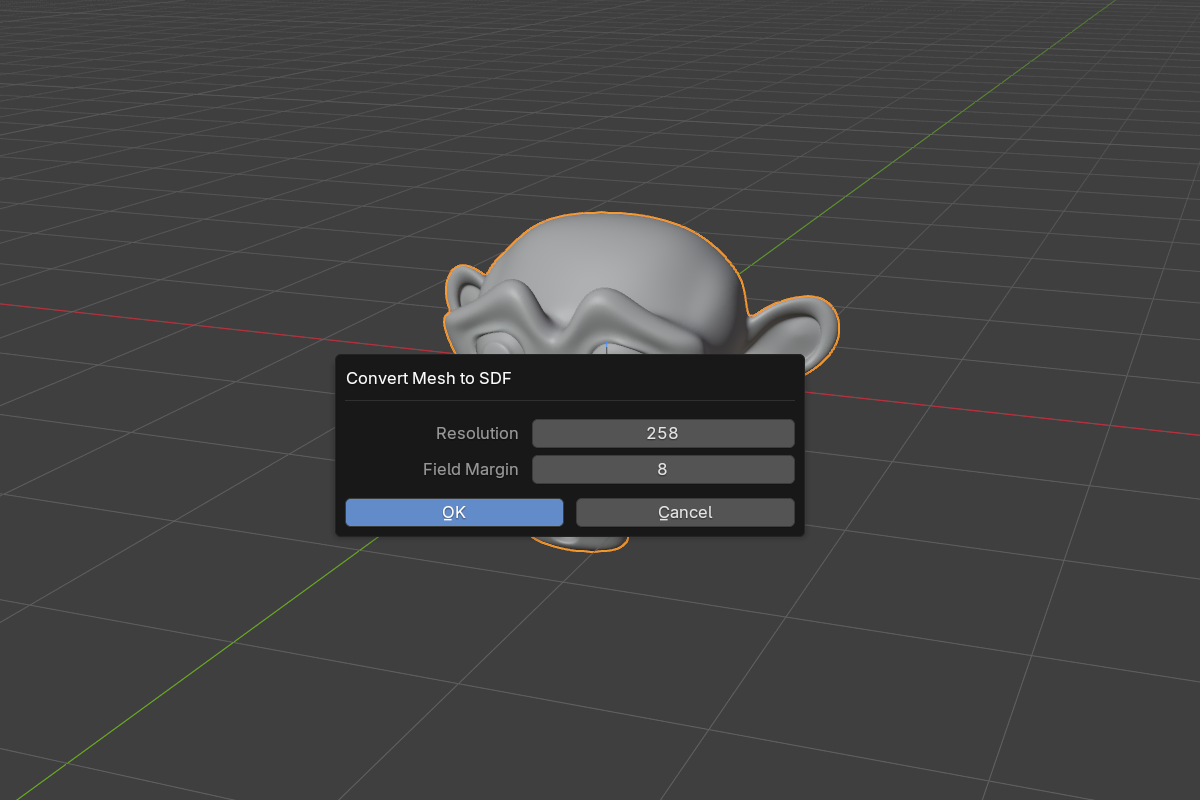

Convert Mesh to SDF

This is the inverse of Convert to Mesh — instead of leaving the field for polygons, you bring polygons into the field.

Converting a mesh

  1. Select one or more regular mesh objects (not already Chisel objects).
  2. Run Convert Mesh to SDF from either:
    • Object Properties → SDF → Convert Mesh to SDF (the button shown under the Chisel toggle while the object is not yet a Chisel object), or
    • RMB → Convert to SDF with the Chisel tool active.
  3. Set the bake options in the dialog, then confirm.

The bake runs on a background worker: the status bar shows Chisel: baking SDF <n>% with a per-object counter, and Esc cancels mid-bake. The original mesh datablock stays as the object’s data — it is the display proxy, so the object keeps its wireframe, bounds, and selection silhouette.

Bake options

  • Resolution — 8–1024, default 128. Grid cells along the mesh’s longest axis. This is the single biggest quality/cost lever: above roughly 256 the grid starts costing gigabytes of VRAM and the bake takes minutes.
  • Field Margin — 6–64 voxels, default 8. The exact-field shell baked around the mesh surface. Emboss strengths and blend widths have to fit inside this shell, so raise it if a wide blend or a deep emboss against the mesh looks clipped.

Both values are stored on the object and can be edited afterwards in Object Properties → SDF, next to the Rebake SDF button.

Rebaking

Editing the source mesh does not automatically re-bake the grid — the field is a snapshot. When you have changed the mesh (or want a different resolution or margin), select the object and press Rebake SDF in the SDF panel. The bake re-runs with the object’s current Resolution and Field Margin, on the same background worker.

Composing with native primitives

Once converted, a mesh prim is just another shape in the chain:

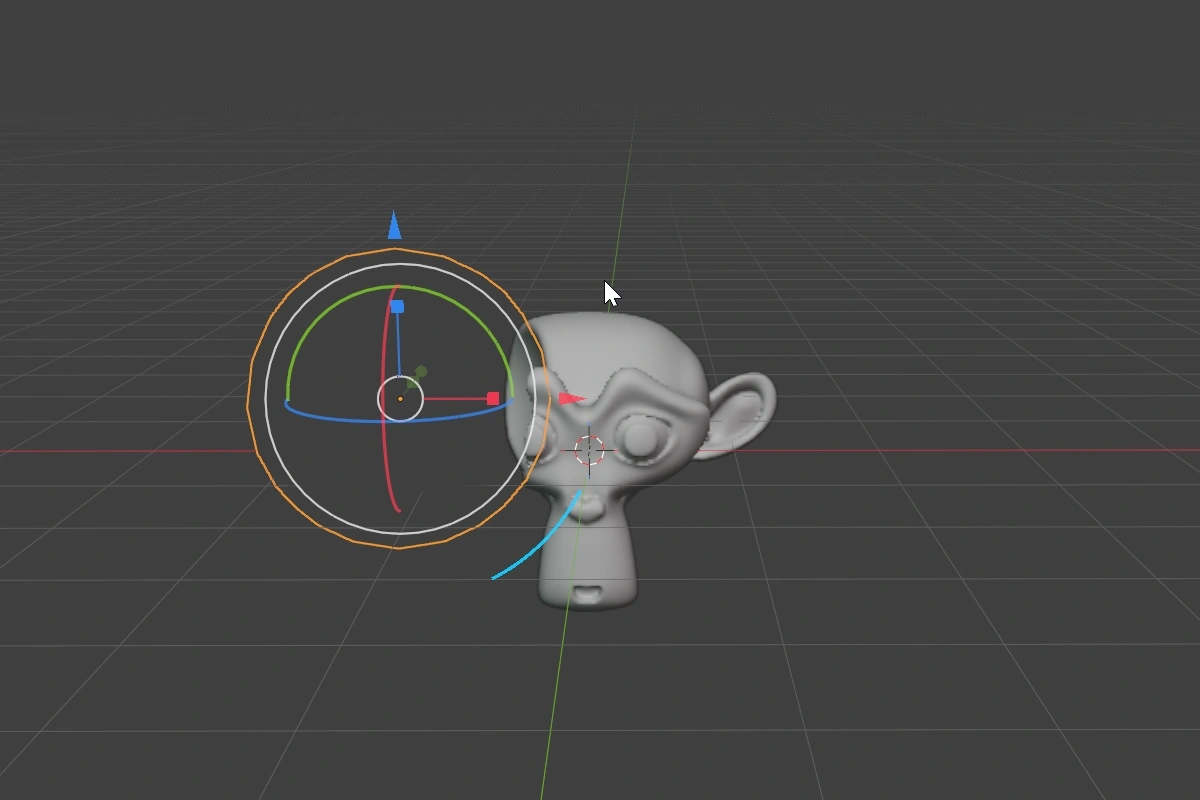

A mesh SDF used as a boolean operand

  • Boolean it against native primitives with smooth blends — the fillet crosses the mesh/primitive seam like any other
  • Emboss or engrave a mesh stamp into a Chisel surface
  • Mirror and array it (arrayed mesh chains reuse a single baked copy for their proxy)
  • Give it a Chisel material and it shades with the rest of the scene

Normals and winding

The bake reads the evaluated mesh, so the object’s Blender modifier stack is applied first. Two things affect the result:

  • Shading — a smooth-shaded source bakes with smooth normals; a flat-shaded source bakes faceted. The operator reports which path it took per object.
  • Winding — the sign of the field comes from face orientation. If a mesh has mixed orientation, Chisel reports a winding confidence warning and the inside/outside test may be wrong in places. Run Mesh → Normals → Recalculate Outside on the source and re-convert.

Storage and file loading

Baked grids are cached by content hash and, by default, stored compressed inside the .blend so reopening a file loads them in milliseconds instead of re-baking. This is budgeted per grid — see Mesh-SDF storage for the Store SDF Bakes in File toggle and its size budget.

Grids that exceed the budget (or were never stored) re-bake on a background thread when the file opens: the prim appears as soon as its bake lands, and the viewport stays responsive in the meantime.

Type cycling

A mesh prim is not cycle-reachable: [ / ] and the Type submenu never turn a native primitive into a Mesh, or a Mesh into a native primitive. Conversion is always explicit.
