Render Engine

Chisel ships a custom GPU ray-marching engine. It evaluates SDFs directly per pixel — no triangulation, no LOD, mathematically exact surfaces at any zoom. Settings live in the Render Properties panel under the Chisel section.

Activate the engine

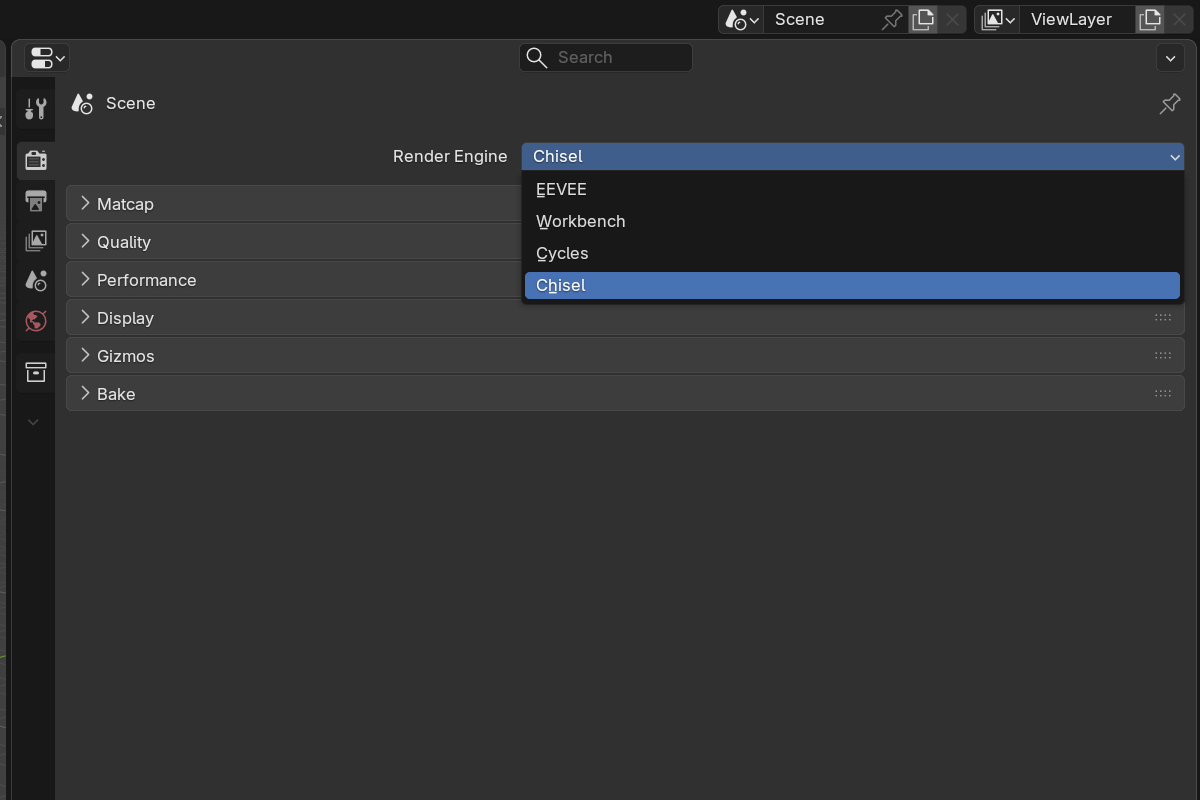

The render engine is set per scene. In each scene where you want to use Chisel, open Render Properties and switch Render Engine to Chisel, then put the 3D viewport into Material Preview shading. The Chisel engine renders SDF objects via raymarching while leaving the rest of Blender’s pipeline (overlays, gizmos, grease pencil) untouched.

The first frame after activation pauses while shaders compile — see the first-run shader compilation note.

Topics

• Quality — ray-march steps, hit threshold, max distance, render resolution, brick detail
• Performance — progressive refinement rungs, edge refinement, incremental brick bakes
• Matcap — built-in matcap library, color tint, specular layer
• Display — outline mode, show bounds, render region, proxy mesh for EEVEE/Cycles, mesh-SDF storage
• Gizmos — in-viewport gizmo overlay toggles (arcs, modifier dots, Ngon handles)
• Baking — bake normal, height, mask, and diffuse maps directly from SDF
• F12 Render — render the SDF scene through the active camera to the Render Result

Performance tips

• Use Vulkan. OpenGL is significantly slower for both compilation and runtime.
• Lower Min Resolution for buttery orbit on dense scenes — progressive refinement holds your Target FPS automatically and climbs back to full quality when you stop.
• Leave Edge Refinement on. Sharp edges over a cheap base frame is a better trade than raising Resolution outright.
• Increase Max Steps only when silhouettes look chunky; the default is enough for most scenes.
• Enable the proxy mode if you need accurate snapping or want EEVEE/Cycles renders alongside Chisel viewports.
• Reduce Resolution before Max Steps — resolution gives you the biggest speedup with the least visible quality loss.
