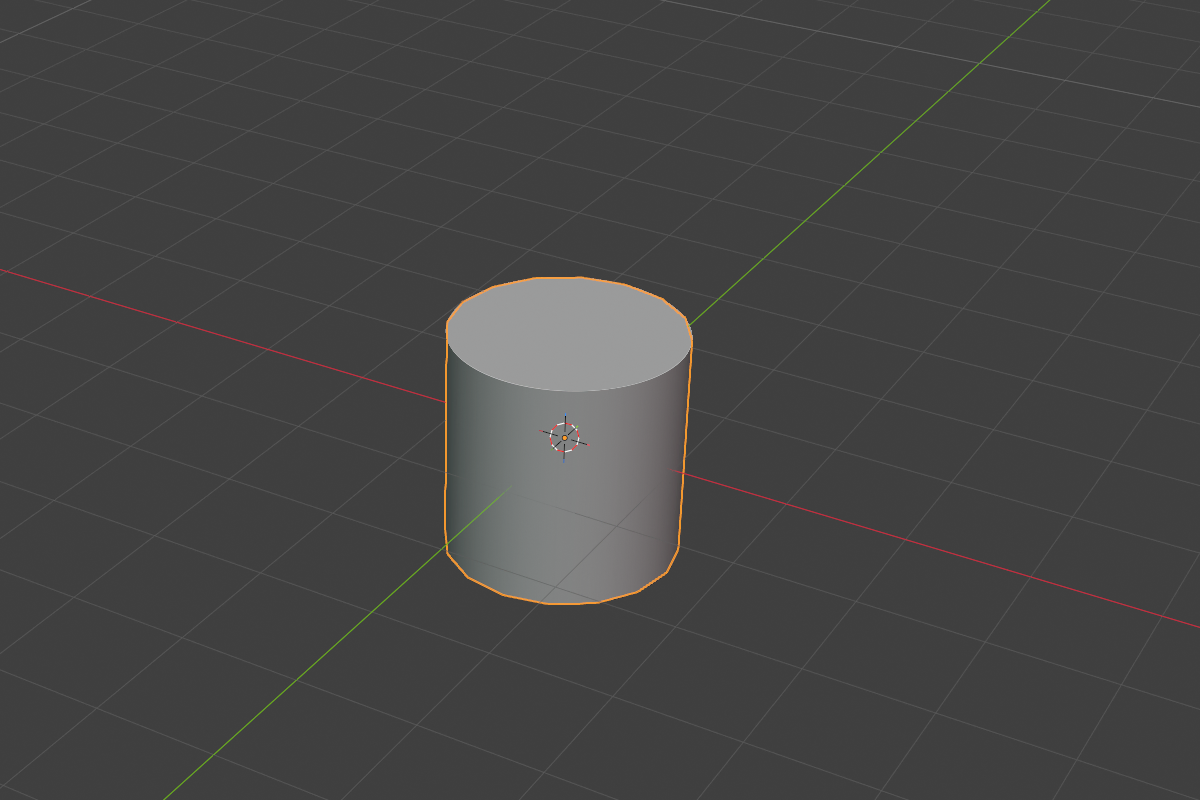

Cylinder

A circular cylinder with optional edge rounding on the rim.

Parameters

• Radius — cap radius (default 1.0)
• Depth — height along the local Z axis (default 2.0)
• Rounding + Profile — applies to the top/bottom rim
• Chamfer Smooth (Profile = Chamfer) — softens where the chamfer meets the faces

Notes

The rounding control affects only the two rims, so a cylinder with heavy rounding reads as a pill viewed side-on rather than a rounded-corner tube.

See also

• Cone — the same shape with an independently scaled top
• Capsule — hemispherical caps instead of flat ones
• Prism — the faceted equivalent
