Oblong

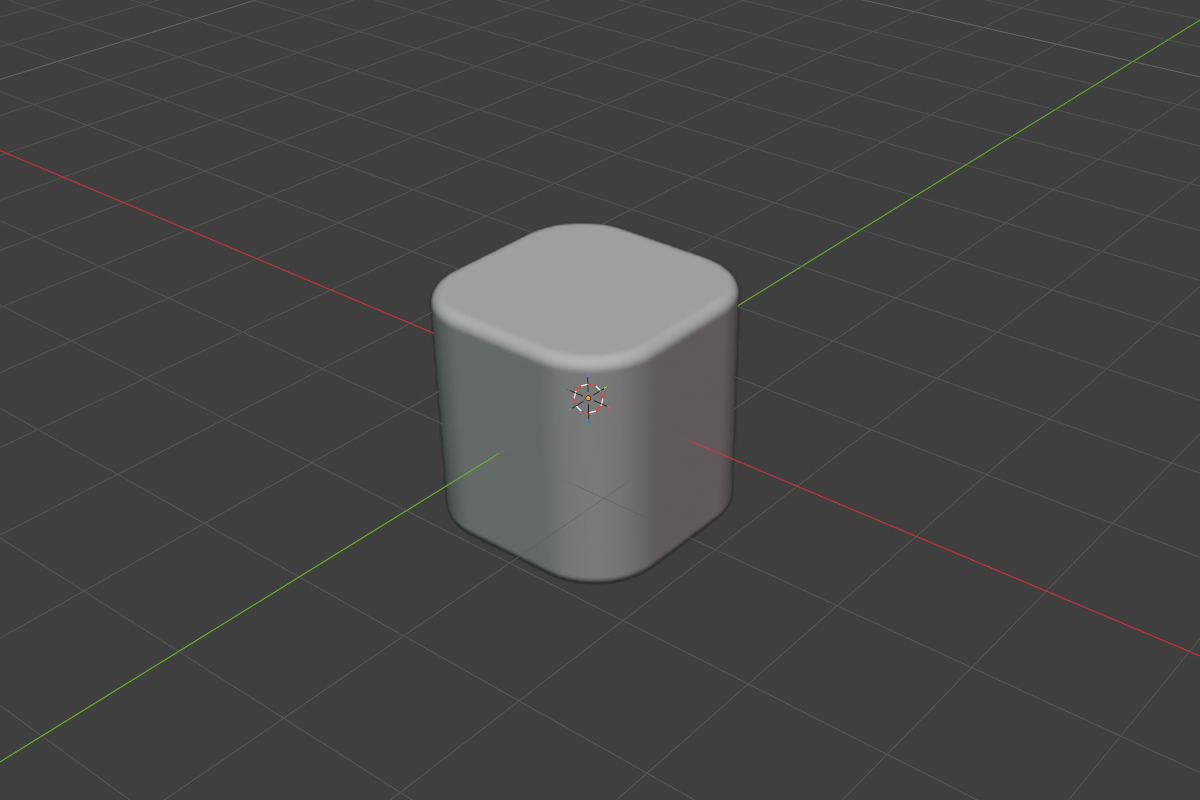

A box whose four vertical edges are bevel-rounded and whose top and bottom caps are rounded separately — the shape that sits between a box, a cylinder, and a sphere. Push the bevel to half the width and it reads as a capsule cross-section; leave it near zero and it is a rounded box.
Parameters
- Size — base extent (default
2.0) - Half-Extents (X, Y, Z) — independent dimensions per axis, controlled by object scale
- Bevel + Bevel Profile + Bevel Smooth — the four vertical corner edges
- Cap Rounding + Profile + Chamfer Smooth — the top and bottom rims
Notes
Bevel and cap rounding are independent, exactly as on Prism and Trapezoid: the Bevel section rounds the vertical edges, the Cap Rounding section rounds the horizontal rims.
