Ngon

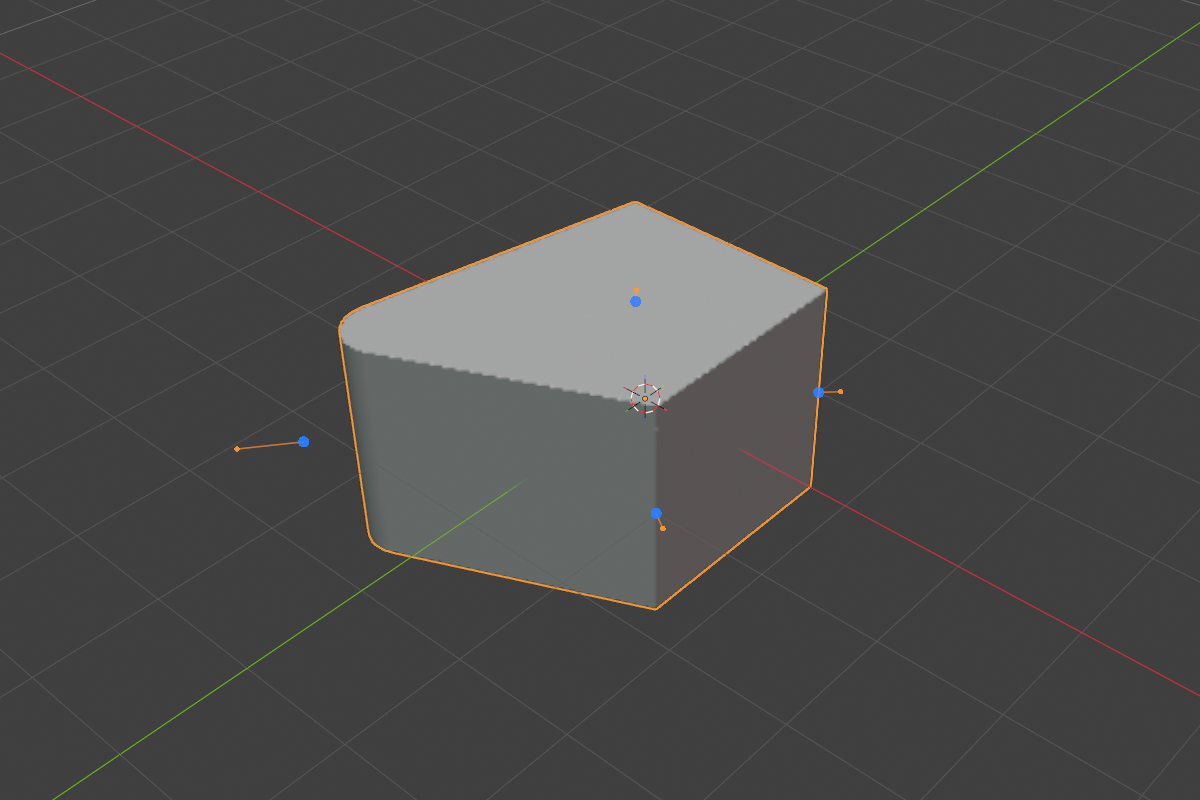

An editable extruded polygon. The outline lives on the object’s local XY mid-plane and extrudes symmetrically along ±Z; you edit the points directly in the viewport with the Ngon gizmo, and each corner carries its own bevel radius and profile.

Parameters

• Points — the polygon vertex list in the Object Properties → SDF panel. Each row is X, Y, corner rounding, corner smooth, and a corner-profile icon dropdown
• Depth — half-height of the symmetric ±Z extrusion (default 1.0, soft max 10.0)
• Per-corner Rounding — fillet radius at that vertex (soft max 2.0, default 0.0)
• Per-corner Profile — Round / Sharp / Soft / Tight / Chamfer, chosen independently for every corner
• Per-corner Smooth — rounds the two seams where a chamfered corner’s cut meets the faces (chamfer profile only)

Editing the outline

A new Ngon starts as a square. Add points with the + button next to the list, or hover an edge in the viewport and click its green add-dot; delete with the − button or by hovering a vertex dot and pressing X / Delete. Three vertices is the minimum — the delete operator refuses to go below it.

Dragging a vertex dot moves that point; dragging its orange handle sets that corner’s rounding, with 1–5 picking the profile and S jumping to the chamfer smooth. Clicking a row in the panel list makes that vertex active, so panel and viewport stay in sync.

Corners

Corner bevels are exact at any corner angle, including concave (reflex) corners — a star or an L-profile fillets cleanly without the pinching a mesh bevel would produce. Because every corner is independent, one outline can carry a tight chamfer on one vertex and a wide round on the next.

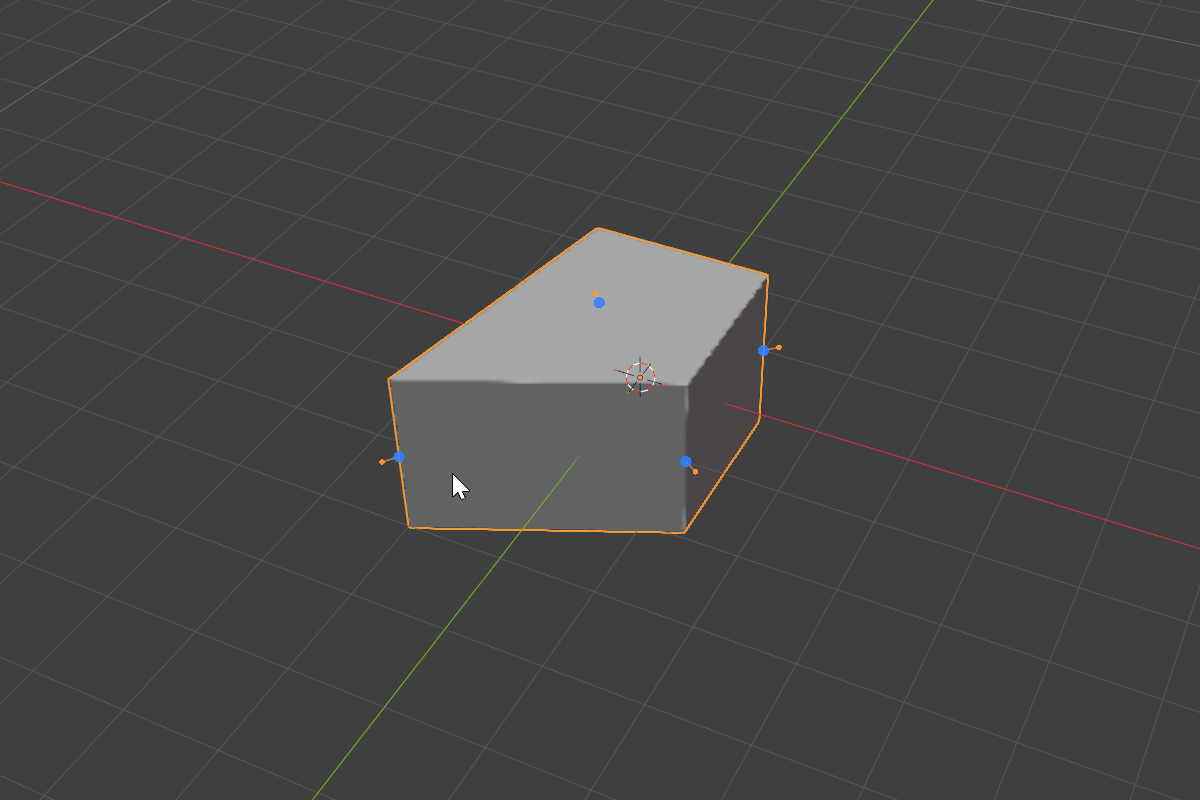

Because the outline is a real distance field, an Ngon blends with its neighbours like any other primitive:
